Corner Protector

What a corner protector actually does

A ratchet strap works by pressing webbing against something. On a bare pallet edge or a stack of cardboard, that something is a sharp corner, and the webbing is rubbed against it under load until it frays, tears or snaps. A corner protector puts a moulded V-shaped buffer between the strap and the corner, so the tension in the webbing is carried across a smooth curved surface instead of a hard edge. It also spreads that load over a wider area, which means the box behind it does not dent and the timber underneath is not cut into. Nothing about the strap itself changes: you thread the webbing through the moulded slot, run the ratchet as usual, and the corner that used to destroy the webbing becomes the strongest point in the tie-down.

Two sizes, one strap system

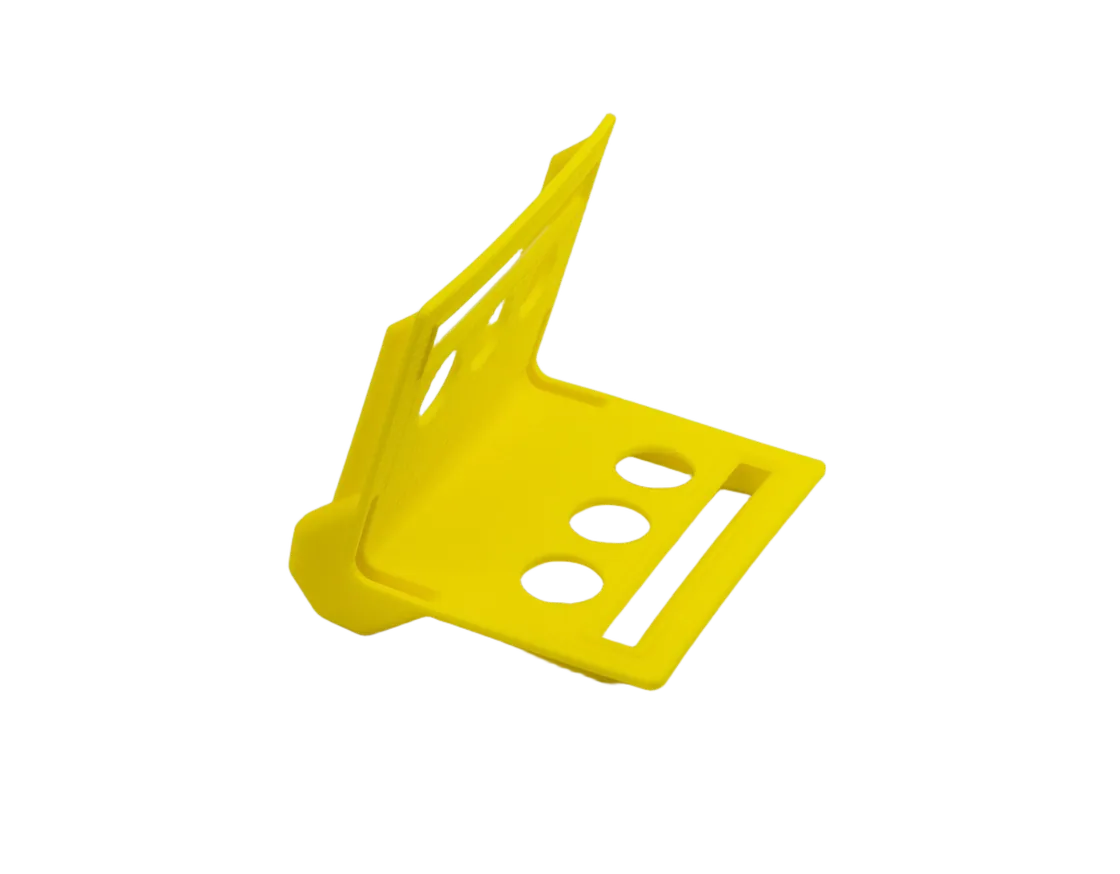

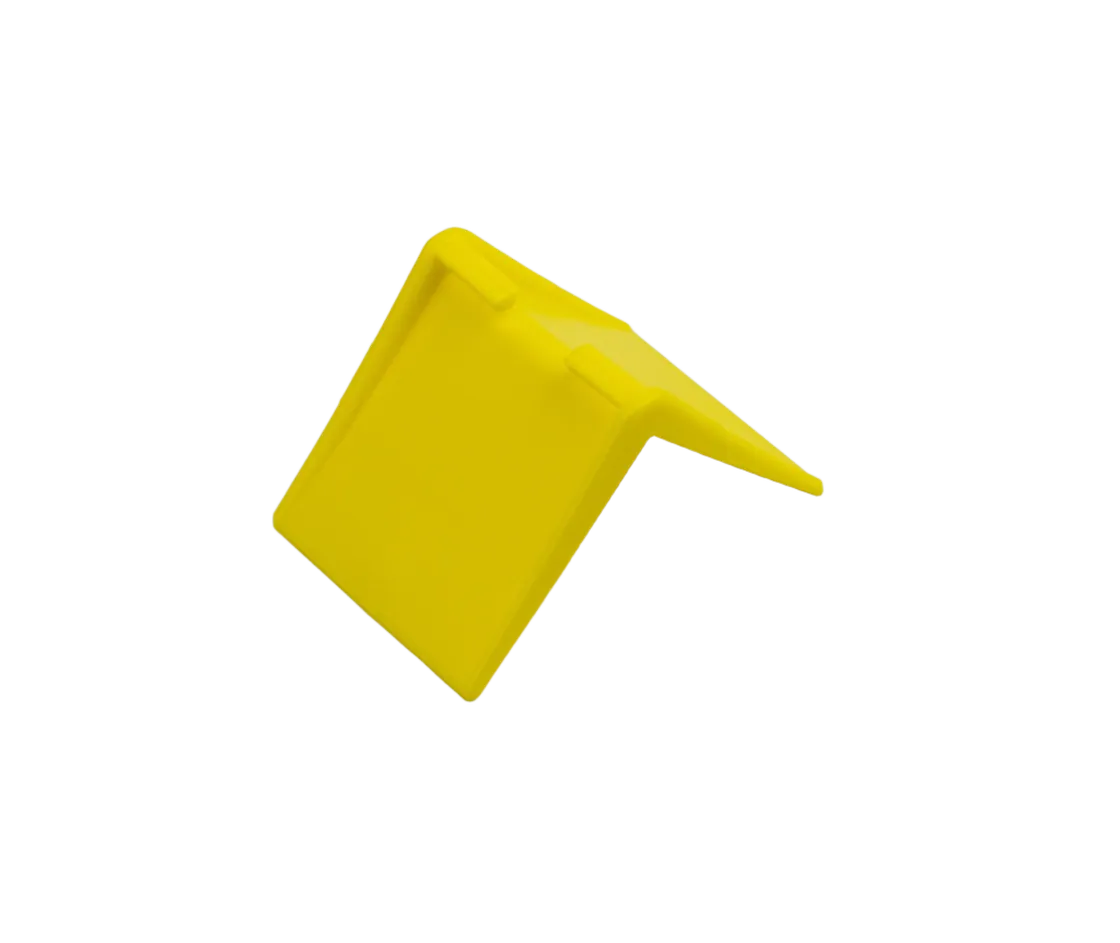

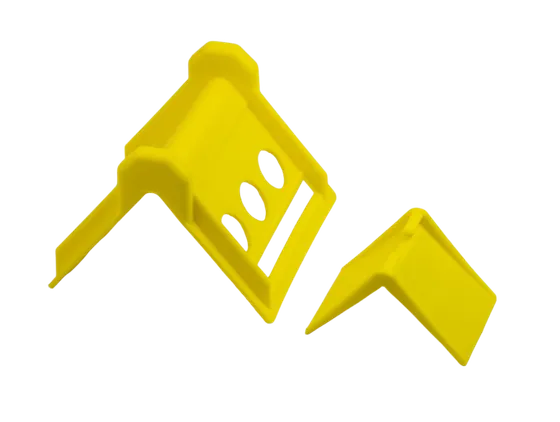

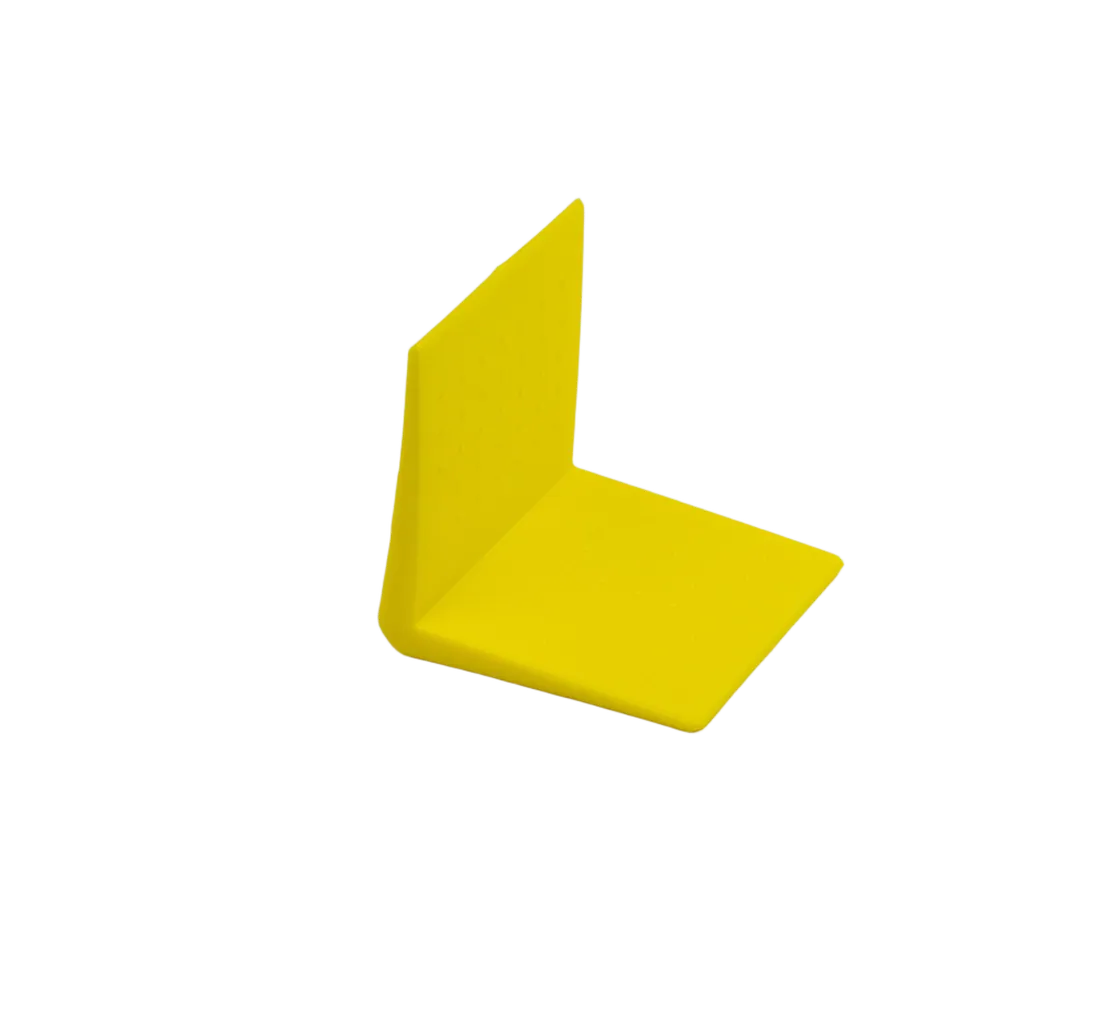

The 1 inch protector is 66 mm across the wing and weighs 20 g. The 2 inch protector is 109 mm across the wing and weighs 85 g. Both are moulded from the same high-density ABS, in the same yellow, and both accept 1 inch to 2 inch wide webbing, so a 25 mm strap and a 50 mm strap can be secured to the same corner of a load. The smaller unit is the right choice for box corners, pallets and household moves where the cargo is light and the packaging already takes the worst of the handling. The larger unit is the one for lumber stacks, crate corners and heavy machinery, where the strap runs at high tension and the corner is the part most likely to give.

Why the material matters in cold weather

Thin, brittle plastic guards crack when a winter load is strapped down in a yard at minus ten, and a cracked guard is worse than no guard at all, because the sharp new edge it leaves behind cuts the webbing it was meant to protect. These protectors are moulded from high-density ABS, which stays rigid without becoming brittle across a wide temperature range. The same material absorbs the small impacts of a load shifting in a truck bed instead of chipping the way a thin shell would. It is a rigid plastic, not an elastomer: it will not flex like a rubber corner, but it will not fracture in the cold either.

The slot that keeps the strap where you put it

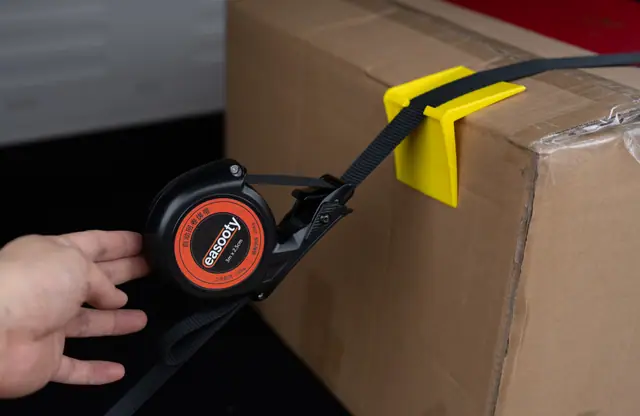

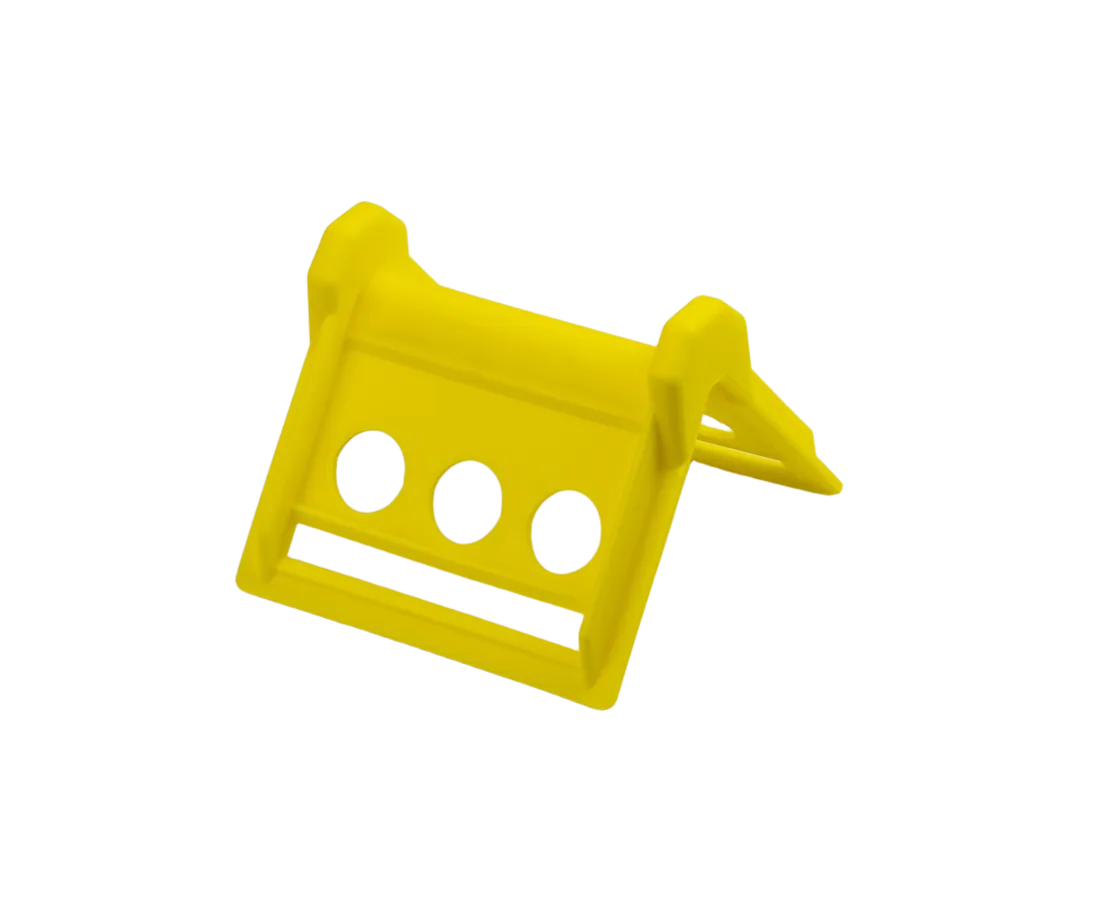

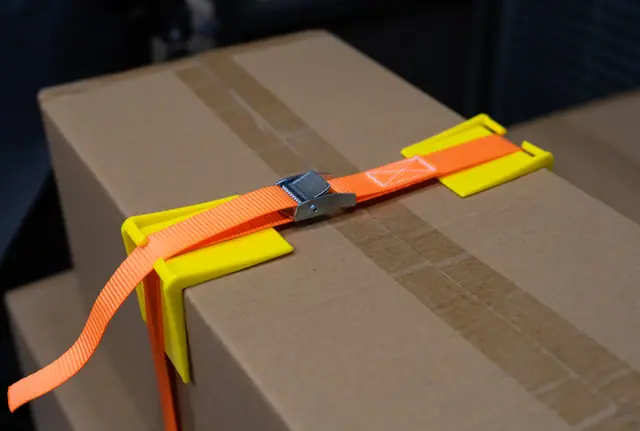

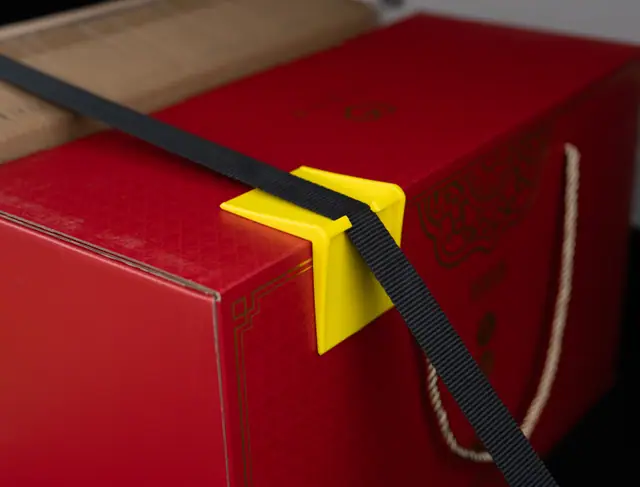

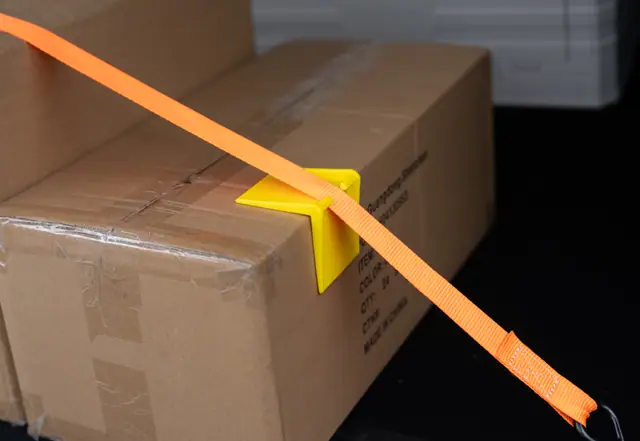

Many corner protectors are a smooth V, which means the webbing sits on a flat face and is free to walk sideways as the load moves. The slot moulded into each wing of this one takes the webbing below the surface, so the strap is captured by the plastic rather than merely resting on it. That is what stops a strap sliding toward the middle of a load, keeps the tension even, and keeps the protector from working itself loose over a long haul. Installation is one movement: drop the guard over the corner, pass the webbing through the slot, and tighten as usual. No tools, no fasteners, and nothing on the protector that can work loose or fall off in transit.

Packing, MOQ and private label

A protector is a reusable part, not a consumable, and they are supplied in 20-piece sets so a crew can carry a full set on a truck rather than a handful. Being stackable, they take up very little room in a tool drawer or on a shelf. MOQ starts at 5000 pieces per size. For private-label buyers we can raise your logo on the wing panel, produce other colours from the same tool, change the number of pieces per bag, print the polybag and put your own carton markings on the box. Send us a competitor sample and a target price and we will tell you honestly whether we can hit it.
